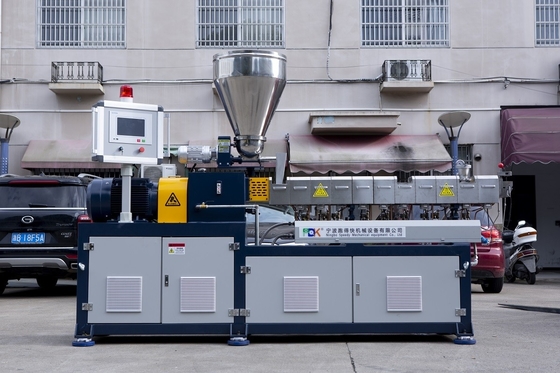

Co-rotating Parallel Twin Screw Plastic Extruder for ABS Pellet Production Granulator

Large Image : Co-rotating Parallel Twin Screw Plastic Extruder for ABS Pellet Production Granulator

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Price:	$22,000.00/sets 1-1 sets

Contact Now

Co-rotating Parallel Twin Screw Plastic Extruder for ABS Pellet Production Granulator

Description

Plastic Processed:	HDPE, HDPE/PP, PA, PE/PP, Polystyrene, ABS/PP, Wood-plastic, PPR, PP, FRPP/PVC, PVC, LDPE, ABS, PET, EVA, PC, Polylactic Acid, EPS	Condition:	New
Output (kg/h):	0.5 - 10 Kg/h	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	1 Year
Core Components:	PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Type:	Granulating Production Line
Screw Design:	Double	Voltage:	380V Optional, 380V Customizable
Dimension(LWH):	20506502000mm	Power (kW):	5.5
Weight:	1000	Warranty:	1 Year
Showroom Location:	None	Applicable Industries:	Manufacturing Plant, Other
Twin Screw Type:	Co-rotating Parallel Twin-screw, Co-rotating Parallel Twin-screw	Screw Speed (rpm):	500 - 600 Rpm
Product Name:	Plastic Granulator Pelletizing Granules Making Machine	Application:	Make Granules
Torque:	43	Capacity(kg/h):	0.5-10
MOQ:	1set	Usage:	Plastic Pipe Extrusion
Processing Type:	Exturding Machine	After-sales Service Provided:	Online Support
Name:	Making Pellets Extruding Machine	Marketing Type:	Ordinary Product
Port:	NINGBO

Product Description

Model	Screw Diameter(mm)	L/D	Motor(kw)	Max Speed(rpm)	Output(kg/h)
TSE-20	22	24-80	~4	400~600	~10-15
TSE-35	35.5	24-80	~18.5	400~600	~60
TSE-40	41	24-80	~37-55	400~600	~150
TSE-50	50.5	24-80	~45-55	400~600	~200
TSE-52	51.4	24-80	~55-75	400~600	~250
TSE-60	59.4	24-80	~75-110	400~600	~300
TSE-65	62.4	24-80	~75-110	400~600	~350
TSE-68	68	24-80	~110-160	400~600	~450
TSE-75	71.4	24-80	~110-160	400~600	~500
TSE-85	81	24-80	~160-250	400~600	~800
TSE-95	93	24-80	~250-315	400~600	~1200

Product packaging

Company Profile

Ningbo Rundekuai Machinery Equipment Co., Ltd.

It is a high-tech company formed by a group of professional teams that have been engaged in R&D, production, sales and service in the extruders industry for many years.At present, it is mainly engaged in the manufacture of complete sets of equipment and related processes based on single- and twin-screw mixing extruders, up to turnkey projects. According to the material system and process process, to realize the optimization of the structure design of mixing equipment, the integration of the electromechanical and the process, is the concentrated expression of our accumulated experience and integrated technology for many years.
The product series cover single-screw extruders, internal mixing, coaxial twin screw mixing unit and auxiliary equipment, etc.Today, with the rapid development of science and technology, the plastic and rubber industries can improve our quality of life and protect the environment. through day-by-day researching, developing, the improved materials are being used in a wider range of applications which provide more and more innovative end products. So the plastic and rubber industries need partners with rich experience and progress. Rundekuai Machinery is just such a partner for improving quality equipment.
Believe in yourself, choose us is your wise choice. Believe in us, considerate service is always our promise.
Trust comes from quality, and professionalism carries the future!

Production Processes

Certifications

Marketing Campaign

FAQ

Q: Are you a factory or trading company?
A: We are a factory.

Q: How many years warranty of the line ?And other Service ?
A: The product of the electrical part is guaranteed for 6 months, and the mechanical part is guaranteed for 1 years. Oversea technician service is available.And our company provides the door-to-door service of installation and commissioning.

Q : How about your delivery time ?
A: Normally we need 30-45 days for the production time after receiving your 30% of the deposit.

Q : What`s the Trade term and payment term do you accept?
A : FOB, CIF, EXW and other price terms based on your kind request.

Q:If we buy your machines, can you offer us wear-out spare pats?
A:Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free.
